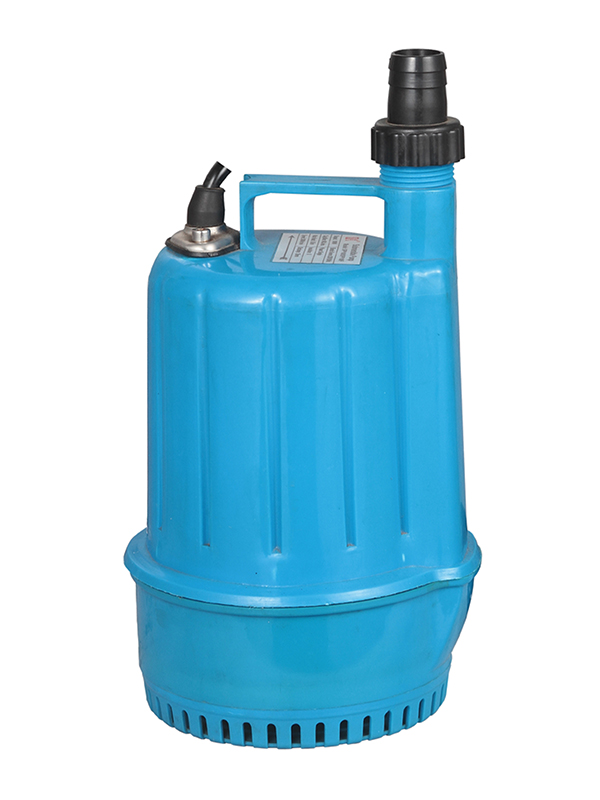

SPP100

產品描述

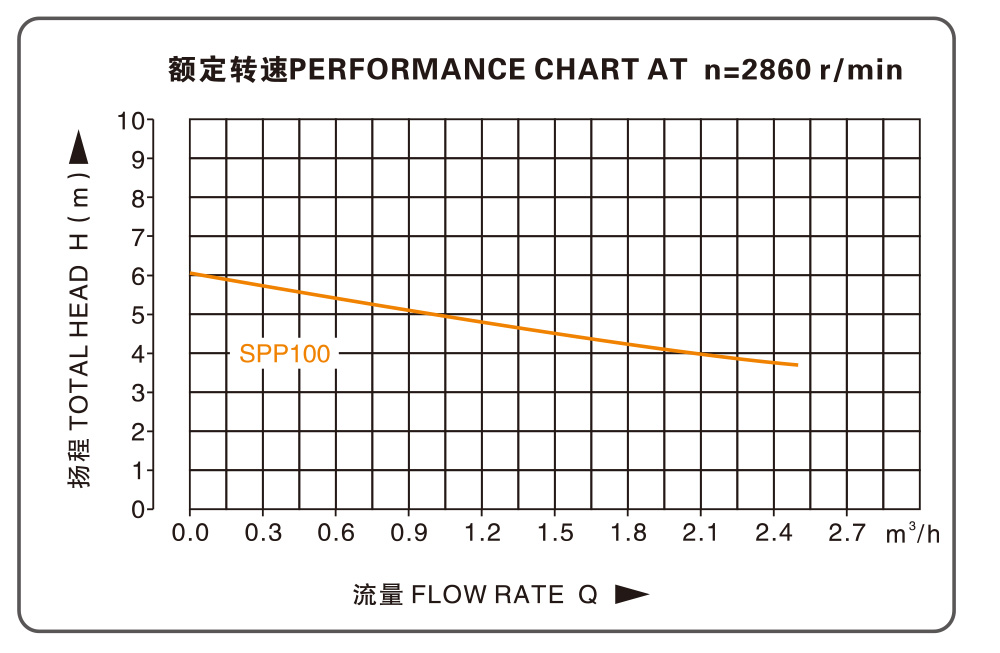

性能曲線 / Performance curve

用途與特點 / Function and Feature

SPP型塑料殼清水潛水泵，可供園藝場澆灌、水簇箱增氧或一般場所的給排水。具有體積小、重量輕、使用方便，配有多種出水管，可根據揚程、流量需要自行調節。水冷式的設計確保了該潛水泵可擱淺使用，長時間運轉電機不過熱、壽命長、保養容易等特點。配上浮球開關后隨著液位的變化能實現自動控制啟停。所配電動機為單相電容運轉異步電動機，內裝有保護器，遇到過熱或過電流時會(huì )自動切斷電源，保證了泵在較惡劣環境下運行的安全性和可靠性。

使用條件 / Condition of usag

◎ 電泵潛入水下深度不超過5米;

◎ 水溫不超過40℃;

◎ 水的PH值為6.5-8.5;

◎ 水中固體顆粒直徑不大于0.2毫米。

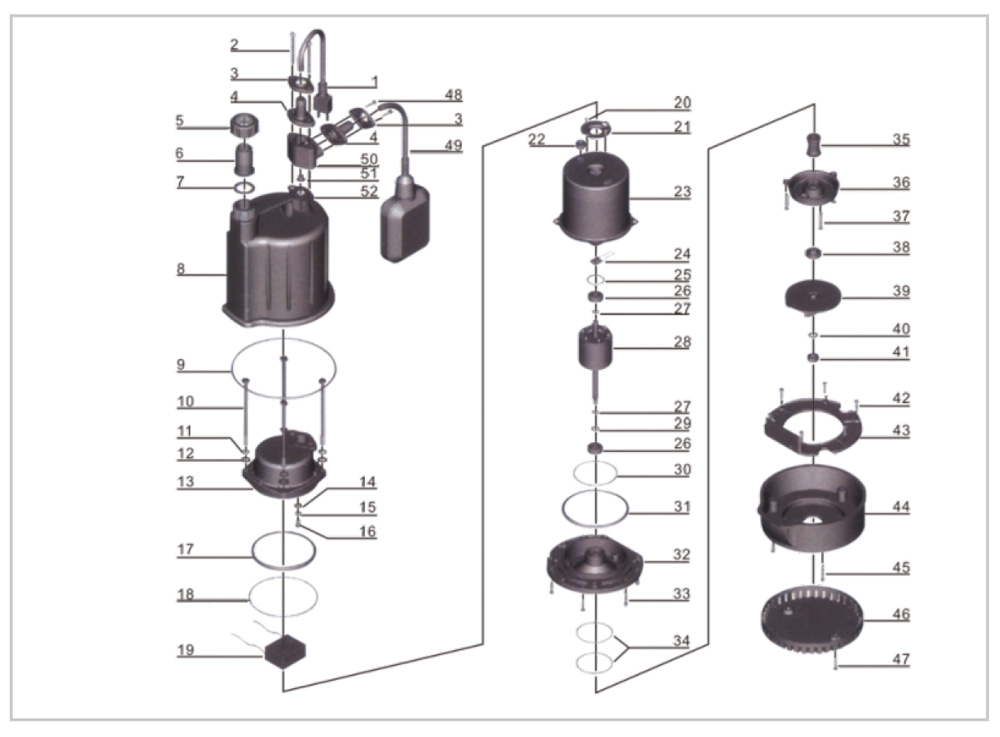

DIAGRAM分解圖 (For the reference of purchasing spare parts供選購配件時參考)

NO.	DESCRIPTION
1	Cable
2	Screw
3	Flange
4	Cable protector
5	Connection nut
6	Out-let connector
7	Rubber washer
8	Motor shell
9	"O" ring
10	Bolt
11	Streching washer
12	Washer
13	Capacitor cover
14	Washer
15	Streching washer
16	Screw
17	Rubber washer
18	"O" ring
19	Capacitor
20	Screw
21	Press plate
22	Line protector
23	Motor stator
24	Thermal protector
25	Undulated washer
26	Ball bearing

NO.	DESCRIPTION
27	Snap ring
28	Rotor
29	Word ring
30	"O" ring
31	Rubber washer
32	Connection part
33	Screw
34	"O" ring
35	Mechanical seal
36	Oil chamber cover
37	Screw
38	Oil seal
39	Impeller
40	Washer
41	Nut
42	Screw
43	Pump cover
44	Pump body
45	Screw
46	Fitter mesh
47	Screw
48	Screw
49	Float switch
50	Tees
51	Hole bead
52	Rubber washer

技術參數 / TECHNICAL DATA

Model 型號	Power 功率 (W)	Outlet Diameter 出水口徑 (mm)	Voltage 電壓 (V)	Max. Flow 最大流量 (L/min)	Max. Head 最高揚程 (m)	Weight 毛重 (kg)	Packing 包裝尺寸 (cm)
SPP100(F)	100	25	220V	60	6.5	4	16x16x26

型號后加“F”表示裝配浮球開關的水泵
